| Nominal Size | Ø40, Ø50, Ø63, Ø100, Ø160 mm |
| Scale Ranges | Ø40 mm : -1…0 bar to 0…160 bar Ø50 mm : -1…0 bar to 0…315 bar Ø63 mm : -1…0 bar to 0…400 bar Ø100 mm: -1…0 bar to 0…600 bar Ø160 mm: -1…0 bar to 0…60 bar |
| Process Connection Sizes | Ø40 mm: G1/8″ Ø50, Ø63 mm: G1/4B Ø100, Ø160 mm: G1/2B |
| Accuracy Class | Ø40, Ø50, Ø63, Ø100 mm : Cl.2.5 Ø160 mm : Cl.1.6 |

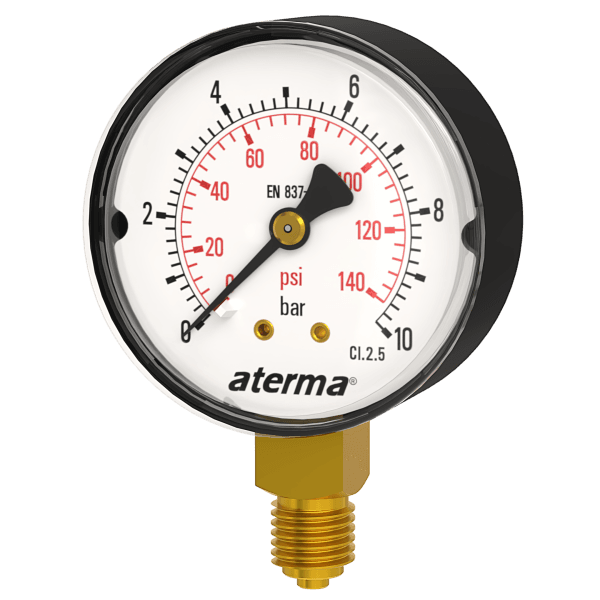

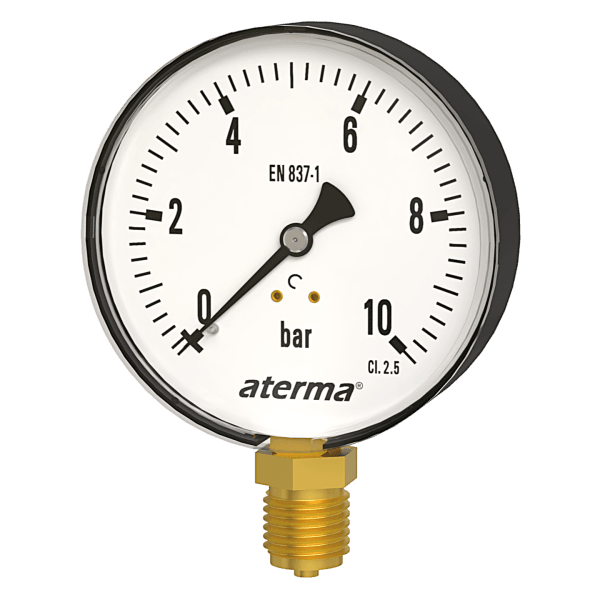

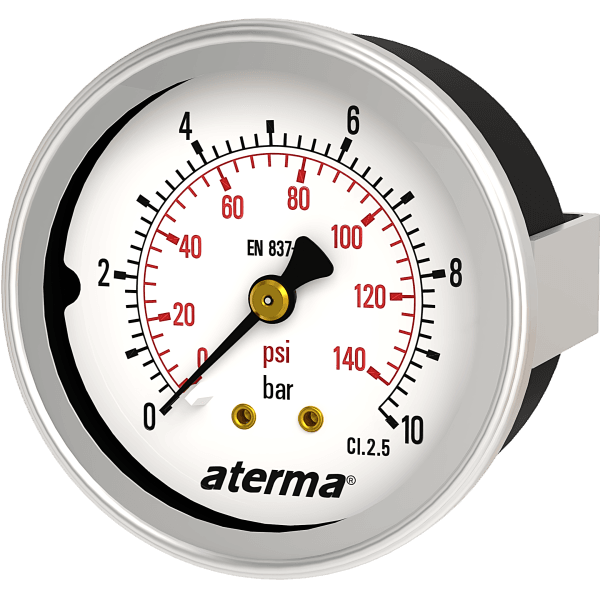

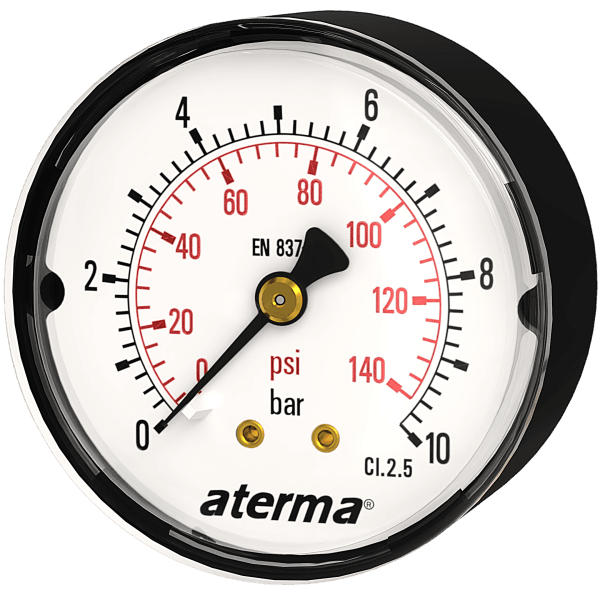

| Mounting | Lower mount, Back mount, Panel mount, Front flange |
● General-purpose pressure measurement
● Non-corrosive gases and liquids
● Pneumatic systems
● Marine & shipbuilding industry
● Heating and ventilation systems
● Medical industry
● Machinery manufacturing
● Manufactured in accordance with EN 837-1
● Cost-effective pricing advantage
● Nominal size options: 40, 50, 63, 100, 160 mm
● Optional process connections (e.g., NPT, M20x1.5)
● Custom measurement scales
● Custom dial design
● Calibration certificate
