| Nominal Size | Ø63, Ø100, Ø160 mm |
| Scale Ranges | -25…0 mbar to 0…1000 mbar |
| Process Connection Sizes | Ø63 mm: G1/4B Ø100, Ø160 mm: G1/2B |
| Accuracy Class | Cl.1.6 |

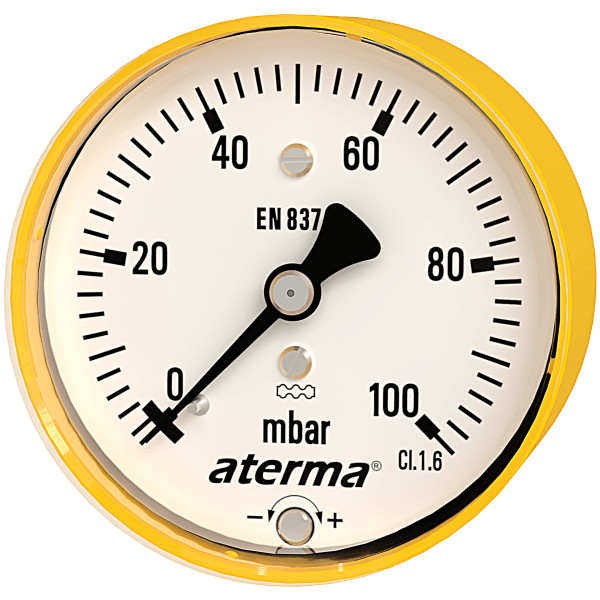

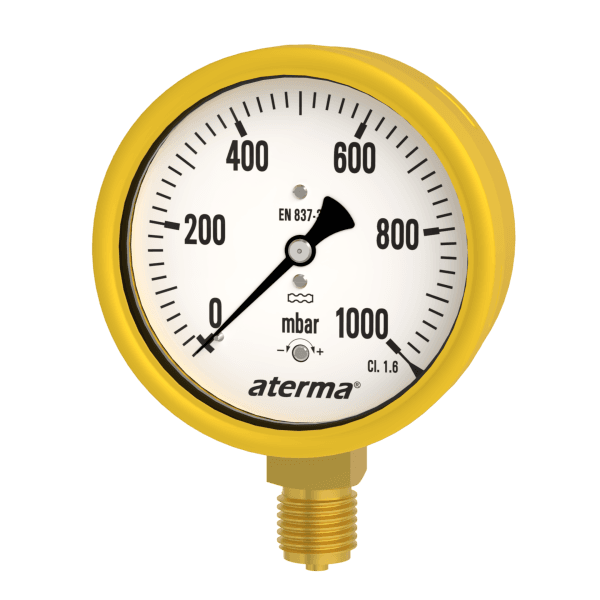

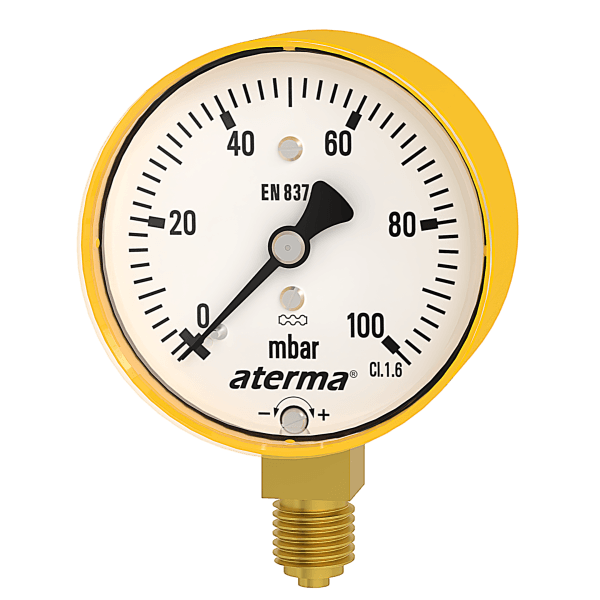

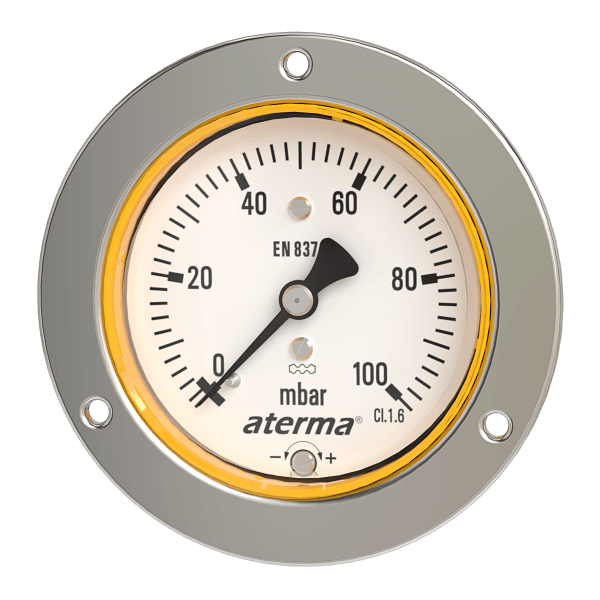

| Mounting | Lower mount, Back mount |
● Natural gas measurement applications
● Low-pressure measurement applications
● Non-corrosive gases and liquids
● Medical industry
● Vacuum systems
● Laboratory systems
● Machinery manufacturing
● Manufactured in accordance with EN 837-3
● Zero adjustment on dial
● Nominal sizes: 63, 100, 160 mm
● Glycerine-filled model for high-vibration applications
● Measuring range from +25 mbar (positive) / -25 mbar (negative pressure)
● Optional process connections (e.g., NPT, M20x1.5)
● Custom measurement scales
● Custom dial design
● Calibration certificate
