| Nominal Size | Ø100, Ø160 mm |
| Scale Ranges | -10…0 mbar to 0…600 mbar |
| Process Connection Sizes | G1/2B |
| Accuracy Class | Cl.1.6 |

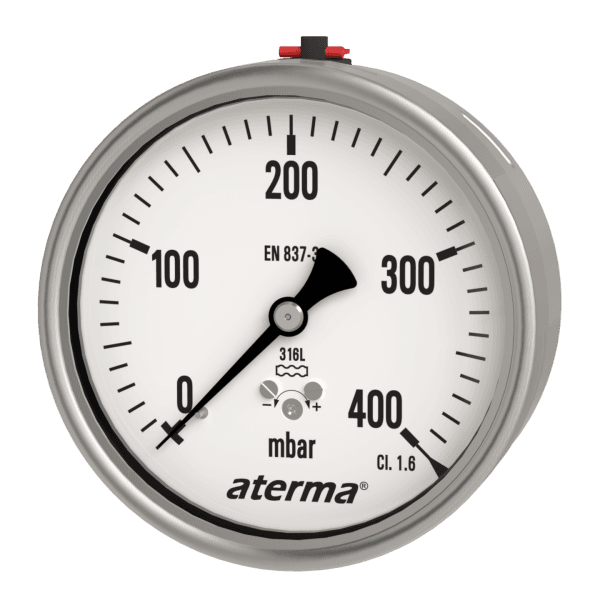

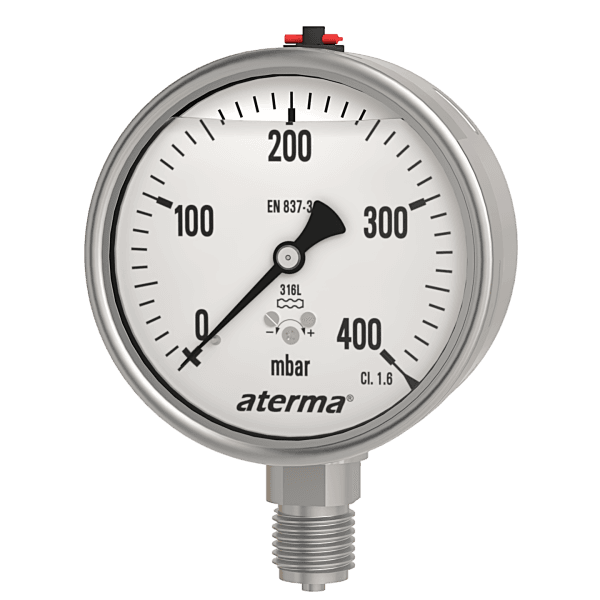

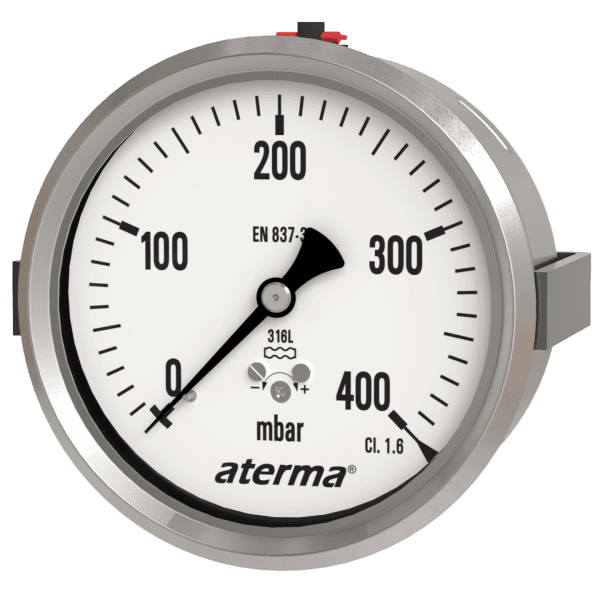

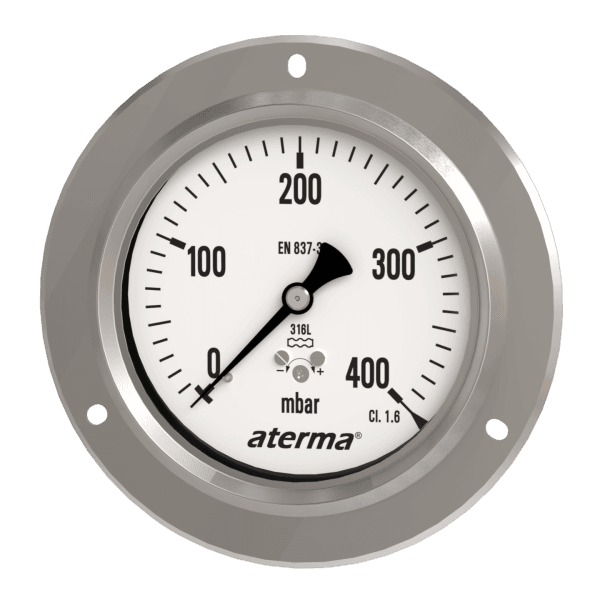

| Mounting | Lower mount, Back mount, Panel mount, Front flange, Back flange |
● Pressure measurement of non-corrosive gases and liquids
● Low-pressure measurement applications
● Power generation industry
● Process industry
● Vacuum systems
● Laboratory systems
● Machinery manufacturing
● Chemical and petrochemical industry
● Natural gas measurement applications
● Food and pharmaceutical industry
● Manufactured in accordance with EN 837-3
● Zero adjustment on dial
● All stainless steel construction
● Glycerine-filled model for high-vibration applications
● Scale ranges from +10 mbar (positive) / -10 mbar (negative pressure)
● Optional process connections (e.g., NPT, M20x1.5)
● Custom measurement scales
● Custom dial design
● Calibration certificate
